| ชื่อแบรนด์: | Sihovision |
| เลขรุ่น: | SC17W |
| MOQ: | 1 ชิ้น |
| ราคา: | ต่อรองได้ |
| รายละเอียดการบรรจุ: | 1ชิ้น/กล่อง 50×20×45ซม. 8.5กก |
| เงื่อนไขการจ่ายเงิน: | T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram |

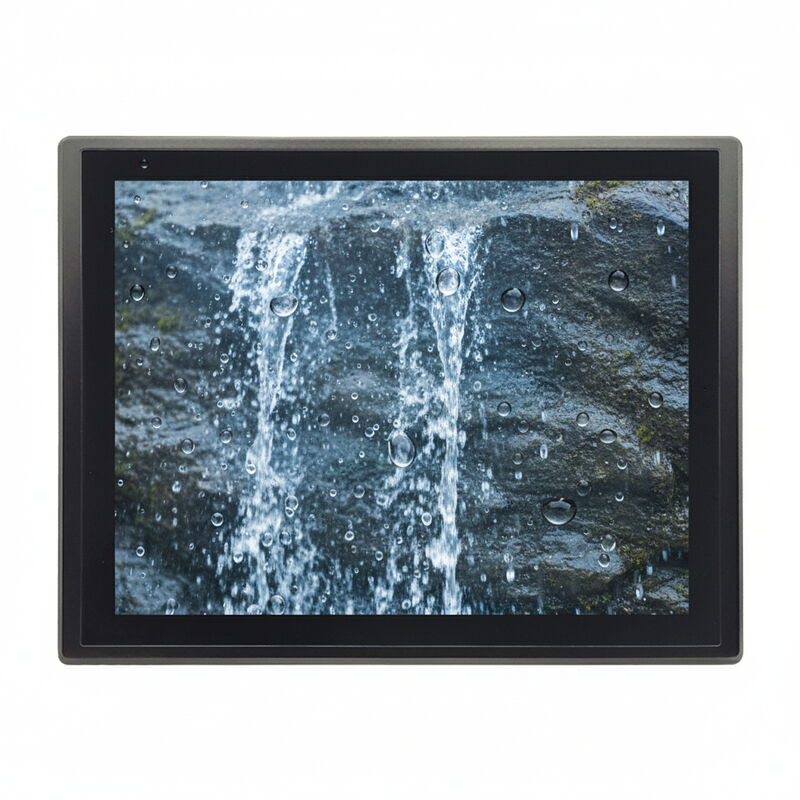

17" Industrial Full IP65 Waterproof Panel PC with 10-Point Capacitive Touch
This rugged 17-inch industrial panel PC exemplifies cutting-edge engineering in harsh environment computing solutions. Engineered with a premium aluminum alloy bezel featuring sandblasting and hard anodizing treatment, the unit delivers comprehensive IP65-rated protection against both water ingress and dust contamination, making it ideally suited for demanding industrial, outdoor, and marine applications.
The display incorporates a high-performance 10-point projected capacitive touchscreen with optical bonding technology, ensuring exceptional touch accuracy and visual clarity even in challenging lighting conditions. The protective layer comprises 2mm chemically strengthened tempered glass with 7H surface hardness, providing superior resistance to scratches and impacts. Notably, the EETI touch control solution maintains full functionality even when water droplets are present on the screen surface—a critical advantage in wet environments.
At its core, the system features an Intel Core i5-5200U processor with passive cooling architecture, enabling completely fanless operation while maintaining robust performance. This fanless design eliminates potential points of failure associated with moving parts, thereby enhancing system reliability and longevity. The configuration includes 8GB DDR3 memory and 128GB SSD storage, delivering responsive performance for industrial control applications.
The unit's exceptional operational temperature range of -20°C to 70°C, coupled with its ability to withstand 100% relative humidity in non-condensing conditions, ensures reliable 24/7 continuous operation across diverse environmental conditions. All external interfaces—including USB 2.0, USB 3.0, RS232, RJ45, and HDMI—feature M16 metal waterproof connectors, maintaining the system's integrity in challenging environments.
The modular construction employs waterproof adhesive sealing between the front frame and rear housing, permitting disassembly for maintenance and inspection without compromising the IP65 protection rating. This thoughtful design approach significantly reduces long-term maintenance costs while ensuring sustained operational reliability in mission-critical applications.
Specification
| Model:SC17W | |
| PC | |
| CPU | Intel® Core i5-5200U, Base 2.0 Ghz, Turbo 2.7 Ghz, Fanless |
| Chipset | SOC |
| Memory | 8G DDR3 |
| Storage Capacity | 128G SSD |
| Graphics | Intel® HD Graphics 5500 |
| Audio | Realtek ALC662 HD |
| Network | Realtek RTL8111E Gigabit network card |
| Wireless Network | WIFI optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| MI6 metal waterproof interface | |
| USB | 2*IP65 USB2.0, 1*IP65 USB3.0 |
| COM | 2*IP65 RS232 |
| LAN | 1*IP65 RJ45 |
| Video Outputs | 1*IP65 HDMI |
| Power input | 1*IP65 DC12V |
| Other | 1*IP65 Power on/off button |
| LCD panel | |
| Screen diagonal | 17" |
| Display active area | 337.92(W)x270.336(H) mm / 13.304x10.643 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 300 nits |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@8A MAX output, 96W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Full IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | operating: -20 °C(-4℉) to 70°C(158℉), storage: -30 °C(-22℉) to 80°C(176℉) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 5.7kg Gross weight 8.4kg |
| Product Dimension | 400×332×50mm |
| Packing info | 1pcs/ctn 55×17×46cm 8.2kg 2pcs/ctn 55*32*46cm 17kg |
| Accessories | Power supply, waterproof USB cables, waterproof LAN cable, waterproof COM cable, waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Applications
It is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, truck, food Industry, security Turnstile, chemical manufacturing, tennis courts, sports ground and other outdoor applications.
Advantages
1. Working temperature range is -10°C to 60°C.
2. Industrial LCD panel is wide viewing angle, high nits and true color.
3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.
4. High performance motherboard, 7x24 continuous operation.
5. Symmetric design can be utillized in portrait mode with style.
6. Heat sink in back case great for heat dissipation and beatiful appearance.
7. Working voltage is wide range 9-36V, suitable for various applications.
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
