As manufacturers invest in more connected and automated production, welding equipment needs to be easier to operate and integrate into the production line. Alongside process control, machine builders are placing greater emphasis on how operators select jobs, check settings, and respond to equipment status.
A clear welding machine HMI brings these everyday tasks together at the machine. Industrial touch panel PC now has been the operator interface within this setup. Integrated into the machine’s control panel, it runs configured HMI software for program selection, permitted parameter entry, status monitoring, and alarm acknowledgement.
1. Application Background
Welding shop environments involve continuous physical activity, heat, and metal dust from nearby cutting and grinding. In these conditions, traditional control panels made of separate meters, dials, and push buttons can become hard to read, slow to adjust, and difficult to wire. Modern machine builders prefer an integrated touchscreen computer that fits flush into the machine cabinet door.
To meet the daily demands of production, equipment builders use the panel-mount computer throughout several standard operating areas:
Operator Consoles for Welding Equipment: Mounted directly into standalone welding machines so operators can choose work programs, adjust settings, and check machine status during a run.
Machine-Side Operator Stations for Automated Welding Cells: Set up on the outside of robotic or automated welding enclosures, allowing technicians to start jobs, test steps, and monitor the cell safely from outside the fence.
Parameter and Status Display Terminals for Production Lines: Integrated along multi-station assembly lines to display work instructions, track operating values, and show alarm notices to the line team.
On any of these stations, operators follow a clear and repetitive daily routine. Before running a cycle, the operator uses the welding machine operator interface to step through a predictable set of actions:
Selecting the required welding task or preset job file from the screen.
Inputting authorized parameters such as wire feed speed, target voltage, and gas timing.
Confirming that the internal machine controller has accepted the values.
Monitoring the operating status and active cycle progress while the machine works.
Reviewing and acknowledging any operational warnings or system alarms that appear.
2. Solution Implementation
2.1 Integrating the Computer into the Operator Panel

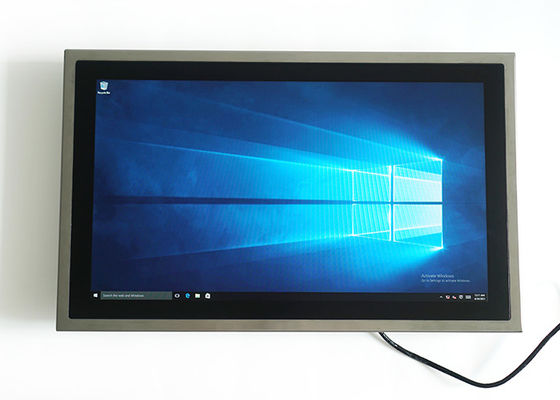

The industrial touch panel PC is mounted within the machine’s operating panel, bringing the display, touch interface, and computing hardware into one assembly. This panel-mount arrangement places HMI access at the designated operating position rather than relying on a separate desktop computer.
Integration starts with the enclosure layout, mounting requirements, cable access, and maintenance needs. Hardware configuration can then be selected around the HMI software and the machine builder’s requirements. Customization is considered during this stage so that the computer fits the project rather than forcing the machine design around a fixed configuration.
2.2 Building a Clear Operating Sequence
The configured welding machine HMI follows the operator’s main tasks:
Select the welding job or program.
Enter or adjust parameters within the permitted scope.
Review the values or selections confirmed by the controller.
Check the equipment’s reported operating status.
View alarms and acknowledge them according to the configured procedure.
The five-wire resistive touchscreen provides the input surface for these interactions. The HMI layout should make requested settings, confirmed values, and active alarms easy to distinguish, helping operators understand what has been entered and what the controller has accepted.
Where the application software supports recording, selected production or welding records can also be saved. Record content and availability depend on the software configuration and the information supplied by the connected system.
2.3 Connecting the Welding Control System
Ethernet, RS-232, and USB provide physical connection options for compatible controllers, peripherals, and maintenance equipment. Their use is determined by the project’s communication requirements rather than by connector availability alone.
During welding HMI panel PC integration, the machine builder verifies the required protocols, software drivers, data exchange, and device compatibility. The configured interface can then display supported controller information and transmit permitted operator inputs.
This keeps the responsibilities distinct: the industrial HMI computer handles operator interaction and supervisory computing, the dedicated welding controller manages the welding process, and the safety system performs the required safety functions.
2.4 Planning Heat Dissipation and Service Access
The fanless panel PC uses a rear heat sink as part of its thermal design. Its installation must therefore be coordinated with the machine enclosure’s overall heat-management approach.
The mounting layout should preserve the required heat-dissipation space rather than positioning the rear heat sink against an obstruction. Cable routing and service access also need consideration so that technicians can reach connections without unnecessarily disturbing adjacent equipment.
These installation details are part of the solution design, not assumptions that the computer can compensate for after installation.
3. Project Benefits
With the hardware, software, and controller interface planned together, the solution supports a more organized operating station. Its value lies in making information and interaction clearer at the industrial machine.
Centralized Operational Information: Operators can see job settings, running states, and active timers on a single screen instead of checking multiple separate gauges and indicators.
Clear Parameter Verification: On-screen entry checks prevent operators from typing numbers outside safe limits, which helps prevent setup mistakes before the welding cycle starts.
Data-Driven Alarm Handling: When an issue happens, such as a wire feed jam or gas flow drop, the screen shows clear descriptive text so technicians can fix the issue quickly without decoding blink patterns.
Streamlined Equipment Integration: Machine builders only need to make one clean cutout in the cabinet door, which simplifies metalwork, shortens wiring time, and lowers assembly effort.
Convenient Maintenance: Standard industrial ports and common operating systems make it easy to service the unit, back up configurations, or update interface graphics over time.
4. Customer Review
"We ordered these panel PCs for our custom automated welding frames. The touch response is solid and accurate when our guys tap through the setup menus, and serial communication to our PLC worked very well."
— Controls Integrator, Automated Machinery & Tooling Shop
5. Conclusion
A reliable industrial all-in-one pc for welding machines delivers a successful platform for job setup, parameter confirmation, status viewing, and alarm interaction. Integrated into the operator console, it brings touch input and computing together while keeping welding control and safety responsibilities with their respective systems.
